vba and OfficeRibbonX

[Ana Luna]

Dear all,
I attach an excel file that contains the Ribbon created by OfficeRibbonX with the code:
<customUI xmlns=[URL]http://schemas.microsoft.com/office/2009/07/customui[/URL]> <ribbon> <tabs> <tab id="customTab" label="Reuniones"> <group id="customGroupBuscar"> <button id="customButton1" label="Search " size="large" onAction="Macro1" getVisible=" GetButtonVisibility " /> <button id="customButton2" label="Edit" size="large" onAction="Macro2" /> </group> </tab> </tabs> </ribbon> </customUI>
This ribbon contains 2 buttoms . The customButton1 visibility depends on the value of getVisible="GetButtonVisibility", that is a Public function designed in vba like this:

>>> use code - tags <<<

Public Function GetButtonVisibility(control As IRibbonControl) As Boolean

    Dim currentUserName As String
    currentUserName = Application.UserName
    MsgBox currenUserName

    If currentUserName = "Iñigo Remirez de Ganuza" Then
         GetButtonVisibility = False
    Else
         GetButtonVisibility = True
    End If

End Function

I think it is easy but regrettably the ribbon Reuniones appears but with the next error message: wrong number of arguments or invlid property assignment.

Do you know what I have done wrong?
Regards.
Your help is much appreciated.



[RyuAutodidacte]

Hello,

1. The code you give for customUI14 xml is not complete and correct (unless it's a mistake on your part).
   it should be like this (don't you put the imagesMso?):


   <?xml version="1.0" encoding="utf-8" standalone="yes"?>
   <customUI xmlns="http://schemas.microsoft.com/office/2009/07/customui">
       <ribbon>
           <tabs>
               <tab id="customTab" label="Reuniones">
                   <group id="customGroupBuscar">
                       <button id="customButton1" label="Search " size="large" imageMso="ListMacros" onAction="Macro1" getVisible="GetButtonVisibility" />
                       <button id="customButton2" label="Edit" size="large" imageMso="AppointmentColor2" onAction="Macro2" />
                   </group>
               </tab>
           </tabs>
       </ribbon>
   </customUI>



2. In the xlsm file, which I've set to .zip in order to unzip it, I can't see the customUI folder inside,
   nor the customUI14 xml that should be inside it.


   When it's correct you have:




3. For the .rels file

   the file is not modified, I don't see the customUI14 part :


   <?xml version="1.0" encoding="UTF-8" standalone="yes"?><Relationships xmlns="http://schemas.openxmlformats.org/package/2006/relationships">
   <Relationship Id="rId3" Type="http://schemas.openxmlformats.org/officeDocument/2006/relationships/extended-properties" Target="docProps/app.xml"/>
   <Relationship Id="rId2" Type="http://schemas.openxmlformats.org/package/2006/relationships/metadata/core-properties" Target="docProps/core.xml"/>
   <Relationship Id="rId1" Type="http://schemas.openxmlformats.org/officeDocument/2006/relationships/officeDocument" Target="xl/workbook.xml"/>
   </Relationships>

   it should look like this:


   <?xml version="1.0" encoding="UTF-8" standalone="yes"?><Relationships xmlns="http://schemas.openxmlformats.org/package/2006/relationships">
   <Relationship Id="custo14" Type="http://schemas.microsoft.com/office/2007/relationships/ui/extensibility" Target="customUI/customUI14.xml"/>
   <Relationship Id="rId3" Type="http://schemas.openxmlformats.org/officeDocument/2006/relationships/extended-properties" Target="docProps/app.xml"/>
   <Relationship Id="rId2" Type="http://schemas.openxmlformats.org/package/2006/relationships/metadata/core-properties" Target="docProps/core.xml"/>
   <Relationship Id="rId1" Type="http://schemas.openxmlformats.org/officeDocument/2006/relationships/officeDocument" Target="xl/workbook.xml"/>
   </Relationships>

4. The code VBA in your Modulo1:

5. Sub GetButtonVisibility(control As IRibbonControl, ByRef returnedVal)
       returnedVal = Application.UserName <> "Iñigo Remirez de Ganuza"
   End Sub

   Sub Macro1(control As IRibbonControl)
       MsgBox "you ve pressed button ""Search"" OnAction "
   End Sub

   Sub Macro2(control As IRibbonControl)
       MsgBox "you ve pressed button ""Edit"" OnAction "
   End Sub

PS: Coucou @Marc L, if you're passing by, regarding customUI ribbon customization, "almost" everyone said you could only do it on PC, I've just proved the opposite by doing it manually on Mac



[Marc L]

Hi Ryu !​

​

I never had to play with the ribbon, as I prefer the previous system until 2003 version which still used under upper versions.​

I did not know the ribbon customization was 'only' under Windows, anyway well done under a Mac !​

​



[Ana Luna]

Hello,

1. The code you give for customUI14 xml is not complete and correct (unless it's a mistake on your part).
   it should be like this (don't you put the imagesMso?):


   <?xml version="1.0" encoding="utf-8" standalone="yes"?>
   <customUI xmlns="http://schemas.microsoft.com/office/2009/07/customui">
       <ribbon>
           <tabs>
               <tab id="customTab" label="Reuniones">
                   <group id="customGroupBuscar">
                       <button id="customButton1" label="Search " size="large" imageMso="ListMacros" onAction="Macro1" getVisible="GetButtonVisibility" />
                       <button id="customButton2" label="Edit" size="large" imageMso="AppointmentColor2" onAction="Macro2" />
                   </group>
               </tab>
           </tabs>
       </ribbon>
   </customUI>

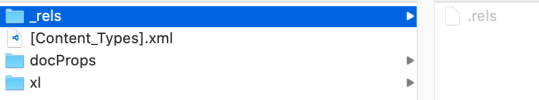

2. In the xlsm file, which I've set to .zip in order to unzip it, I can't see the customUI folder inside,
   nor the customUI14 xml that should be inside it.
   View attachment 85259

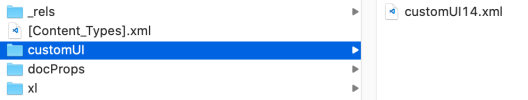

   When it's correct you have:
   View attachment 85263



3. For the .rels file
   View attachment 85260
   the file is not modified, I don't see the customUI14 part :


   <?xml version="1.0" encoding="UTF-8" standalone="yes"?><Relationships xmlns="http://schemas.openxmlformats.org/package/2006/relationships">
   <Relationship Id="rId3" Type="http://schemas.openxmlformats.org/officeDocument/2006/relationships/extended-properties" Target="docProps/app.xml"/>
   <Relationship Id="rId2" Type="http://schemas.openxmlformats.org/package/2006/relationships/metadata/core-properties" Target="docProps/core.xml"/>
   <Relationship Id="rId1" Type="http://schemas.openxmlformats.org/officeDocument/2006/relationships/officeDocument" Target="xl/workbook.xml"/>
   </Relationships>

   it should look like this:


   <?xml version="1.0" encoding="UTF-8" standalone="yes"?><Relationships xmlns="http://schemas.openxmlformats.org/package/2006/relationships">
   <Relationship Id="custo14" Type="http://schemas.microsoft.com/office/2007/relationships/ui/extensibility" Target="customUI/customUI14.xml"/>
   <Relationship Id="rId3" Type="http://schemas.openxmlformats.org/officeDocument/2006/relationships/extended-properties" Target="docProps/app.xml"/>
   <Relationship Id="rId2" Type="http://schemas.openxmlformats.org/package/2006/relationships/metadata/core-properties" Target="docProps/core.xml"/>
   <Relationship Id="rId1" Type="http://schemas.openxmlformats.org/officeDocument/2006/relationships/officeDocument" Target="xl/workbook.xml"/>
   </Relationships>

4. The code VBA in your Modulo1:

5. Sub GetButtonVisibility(control As IRibbonControl, ByRef returnedVal)
       returnedVal = Application.UserName <> "Iñigo Remirez de Ganuza"
   End Sub

   Sub Macro1(control As IRibbonControl)
       MsgBox "you ve pressed button ""Search"" OnAction "
   End Sub

   Sub Macro2(control As IRibbonControl)
       MsgBox "you ve pressed button ""Edit"" OnAction "
   End Sub

PS: Coucou @Marc L, if you're passing by, regarding customUI ribbon customization, "almost" everyone said you could only do it on PC, I've just proved the opposite by doing it manually on Mac

Dear Ryuautodidacte, I have followed your instructions and now my filter with RibbonX works perfectly!, thank you so much. You've saved me a lot of time. Thank you.
